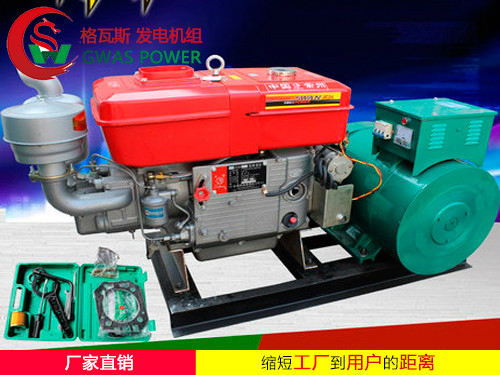

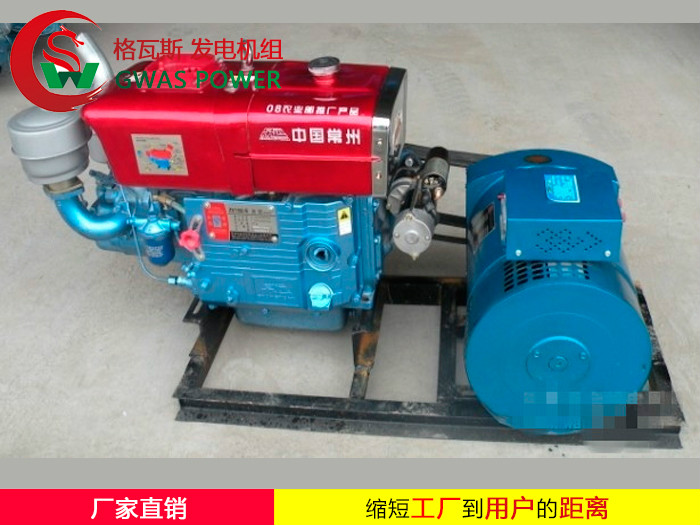

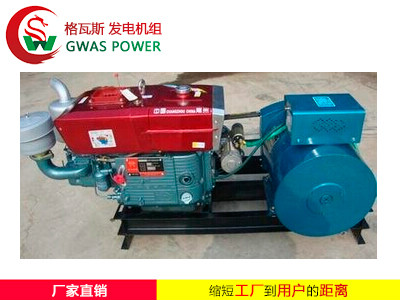

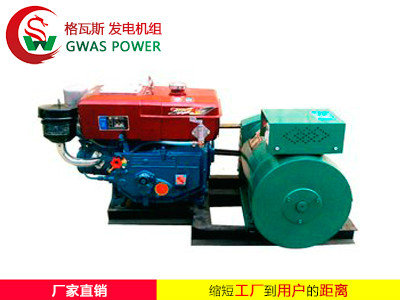

Single Cylinder Diesel Gen-set
  • Single Cylinder Diesel Gen-set
  • Single Cylinder Diesel Gen-set
  • Single Cylinder Diesel Gen-set
  • Single Cylinder Diesel Gen-set
  • Single Cylinder Diesel Gen-set
Product Name:Single Cylinder Diesel Gen-set
Service Call:400-678-8879
Products Detail

Single Cylinder Diesel Gen-set



Small power diesel generator sets:

Changchai diesel engine

Yuchai diesel engine

Changzhou diesel engine


The small power diesel generator sets is widely used in mining, railway, field working, road and traffic maintence, factory, enterprise, hospital, etc. As emergency power supply,  get the good application. With small size, strong power, safe and reliable performance. Excellent after-sales service and plenty of accessories supply, pwer from 5KW to 30KW, reliable performance  and resonable price.



24h service hotline:400-888-5609/15184487333

主要技术参数Main technical parameters

项目/规格
ITEM

GWAS-5

GWAS-8

GWAS-10

GWAS-12

GWAS-15

GWAS-20

GWAS-24

GWAS-30

额定功率
Rated Power(KW)

5

8

10

12

15

20

24

30

额定电压
Rated voltage(V)

230/400V

额定电流
Rated current(A)

9

13.5

18.1

21.7

27.1

36.1

43.3

54.1

额定频率
Frequency(hz)

50

额定因素
Power factor

0.8(滞后)

额定转速
Speed(r/min)

1500

电机绕组连接方式
Connecting type

三相四线 three-fase four-wire

所配柴油机型号
Engine model

R180

R190

ZS1100

ZS1100

ZS1115

L25

ZS1125

ZS1130

燃油消耗率
Fuel consumption(g/kw.h)

257

257

257

244.8

242.1

244.8

244.8

244.8

冷却方式
cooling type

蒸发式水冷evaporating system

润滑方式
lubricating system

压力飞溅 combined pressure and splashing

启动方式
Starting type

 手摇

hand-cranking

手摇

hand-cranking

手摇/电动

hand-cranking/electric start

手摇/电动

hand-cranking/electric start

手摇/电动

hand-cranking/electric start

手摇/电动

hand-cranking/electric start

手摇/电动

 hand-cranking/electric start

手摇/电动

hand-cranking/electric start
