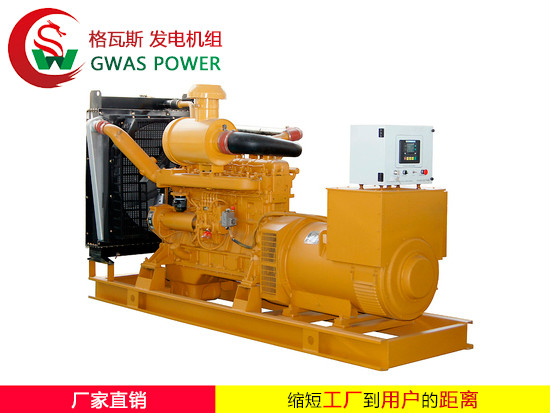

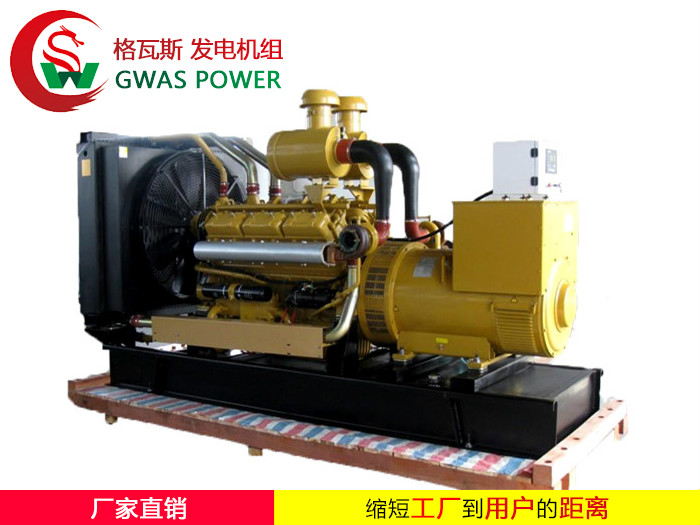

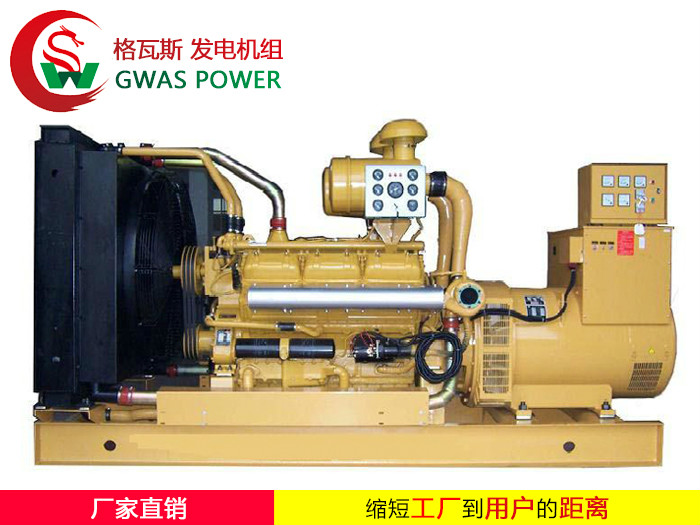

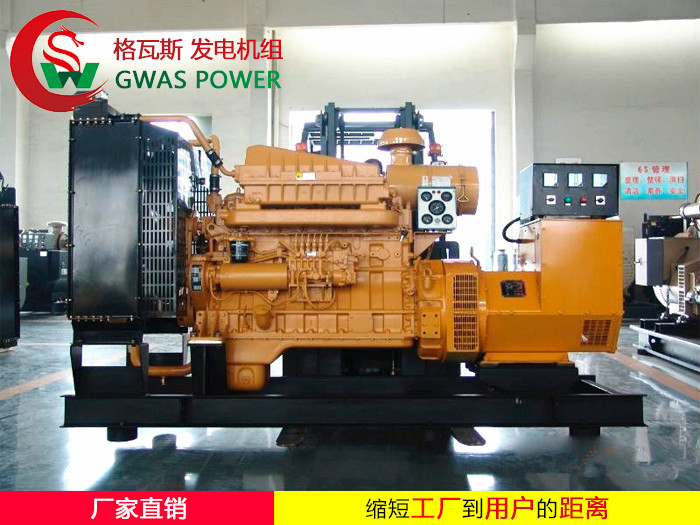

SDEC series diesel generator set
The gensets is matched with engines of Shangchai Co., Ltd. From 2014, Shangchai Co., Ltd use the trademark”SDEC” in generator engine market. The product model using SC series logo, including SC4H,SC7H,SC8D,SC9D,SC12E,SC13G,SC15G,SC25G,SC27G,SC33W. The new power engine has lighter volume to meet the more powerful, energy saving and environmental protection.
The alternator is selected of Standford,ENGGA,MARATHON,and other famous brands. Alternator adopt the salient pole whole rotor technology, H class insulation, armor plate fuselage, with advanced performance, running smoothly.
The control system can match with multi-functional intelligent control module according to the actual demand. The Chinese-English switch operating interface has the functions of automatic and manual control, detailed exposure information and protection.
Technical Parameter： 50HZ
|
Main Technical Parameter （400V3相4线50Hz Cos§0.8） |
|||||||||||
|
Generator set technical parameter |
Engine technical parameter |
||||||||||
|
Generating set model |
Output Power |
Dimensions |
Fuel consumption rate |
Weight |
Engine model |
Cylingers/Arrangement |
Bore |
Stroke |
Displacement |
Lube volume |
|
|
长（L)*宽(W)*高(H) |
|||||||||||
|
KW |
KVA |
MM |
KG |
KG |
MM |
MM |
L |
L |
|||
|
GF-50 |
50 |
62.5 |
2000*800*1300 |
≤ 210 |
1350 |
4135D-1 |
4/L |
135 |
140 |
8 |
25 |
|
GF-75 |
75 |
93.4 |
2600*880*1400 |
≤ 210 |
1600 |
6135D-3 |
6/L |
135 |
150 |
8.6 |
25 |
|
GF-100 |
100 |
125 |
2600*880*1400 |
≤ 210 |
1800 |
6135AD-3 |
6/L |
135 |
150 |
12 |
28 |
|
GF-150 |
150 |
187.5 |
2700*900*1450 |
≤ 210 |
2000 |
6135AZD-1 |
6/L |
135 |
150 |
12 |
28 |
|
GF-200 |
200 |
250 |
2800*1100*1700 |
≤ 200 |
2100 |
G128ZLD |
6/L |
135 |
150 |
12.9 |
28 |
|
GF-250 |
250 |
312.5 |
3000*1300*1800 |
≤ 200 |
2400 |
G128ZLD1 |
6/L |
135 |
150 |
12.9 |
28 |
|
GF-300 |
300 |
375 |
3000*1350*1800 |
≤ 200 |
2500 |
G128ZLD11 |
6/L |
135 |
150 |
12.9 |
27 |
|
GF-350 |
350 |
437.5 |
3600*1500*2050 |
≤ 200 |
3500 |
12V135AZLD |
12/L |
135 |
155 |
25.8 |
57 |
|
GF-400 |
400 |
500 |
3600*1500*2050 |
≤ 200 |
3600 |
12V135BZLD |
12/L |
135 |
155 |
26.6 |
57 |
|
GF-450 |
450 |
562.5 |
3600*1500*2100 |
≤ 205 |
4000 |
12V135BZLD2 |
12/L |
135 |
155 |
26.6 |
57 |
|
GF-500 |
500 |
625 |
3600*1500*2100 |
≤ 200 |
4100 |
12V135BZLD1 |
12/L |
135 |
155 |
26.6 |
57 |
Normal condition:ambienttemp:40℃,altitude:1000M,relative humidity:60%
Standard configuration:
|
Enigne |
Maintenance-free battery/battery connecting wire/battery charger |
Alternator |
|
40℃ radiating water tank |
Output circuit breaker |
Industrinal muffler/bellows |
|
Intellectual control panel |
Steel frame |
Standard tool |
Optional configuration:
|
50℃Radiating |
Fuelty pe-water jacket heater |
Auto communication control system |
|
Residential muffler |
Oil-water separator |
3-remote communication control system |
|
Heavy duty industrial extinguishing muffler |
Base fuel tank/daily fuel tank |
Auto parallel running control system |
|
Heavy duty airfilter |
Auto lube feeding system |
ATS panel |
|
Elect rothe rmic wate rjacket heater |
Auto fuel feeding system |
Special tool |
