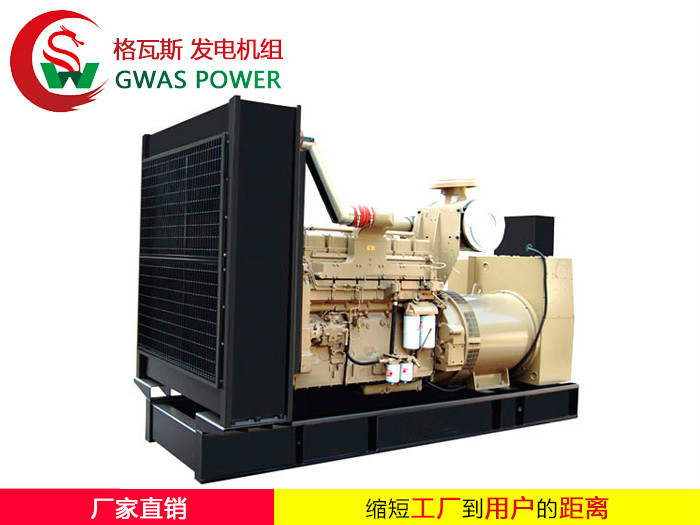

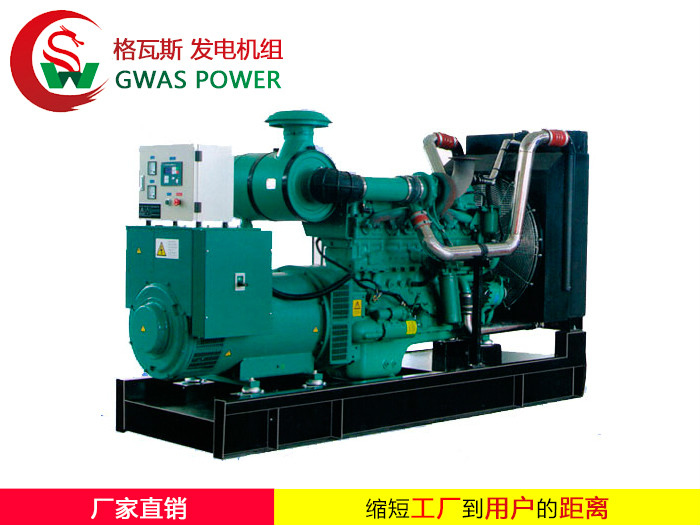

DCEC Series Diesel Generator Set
The Cummins diesel generating sets is one the high-end brand with is developed according to the users’ requirements. The engine is manufactured by Cummins(China) Power Technology Co.,Ltd. The PT fuel system of engine, with four air intake ways:naturally aspirated, superchatged, turbocharged intercooled, and twincharged, has the advantages of light weight, strong power, great-torque,low consumption,convenient maintenance. The power of generating sets range from 20~200KW, with the function of auto-protection and also can match with automatic generator sets.
Technical Parameter： 50HZ
|
主要技术参数Main Technical Parameter |
||||||||||||
|
机组技术参数 Generator set technical parameter |
发动机技术参数Engine technical parameter |
|||||||||||
|
机组型号 Generating set model |
输出功率 Output Power |
外形尺寸 Dimensions |
燃油消耗率 Fuel consumption rate |
重量 Weight |
发动机型号 Engine model |
缸数/排列 Cylingers/Arrangement |
缸径 Bore |
行程 Stroke |
排量 Displacement |
润滑油容量 Lube volume |
冷却液容量 Cooling water volume |
|
|
长（L)*宽(W)*高(H) |
||||||||||||
|
KW |
KVA |
MM |
KG |
KG |
MM |
MM |
L |
L |
L |
|||
|
GF-24 |
24 |
30 |
1650*830*1388 |
229 |
980 |
4B3.9-G1 |
4/L |
102 |
120 |
3.9 |
11 |
18 |
|
GF-30 |
30 |
37.5 |
1687*830*1388 |
214 |
990 |
4BT3.9-G2 |
4/L |
102 |
120 |
3.9 |
11 |
18 |
|
GF-50 |
50 |
62.5 |
2200*850*1440 |
214 |
1350 |
4BTA3.9-G2 |
6/L |
102 |
120 |
5.9 |
16 |
29 |
|
GF-75 |
75 |
93.75 |
2200*850*1440 |
214 |
1450 |
6BT5.9-G1 |
6/L |
102 |
120 |
5.9 |
16 |
29 |
|
GF-100 |
100 |
125 |
2282*850*1445 |
208 |
1650 |
6BTA5.9-G2 |
6/L |
102 |
120 |
5.9 |
16 |
29 |
|
GF-120 |
120 |
150 |
2390*950*1561 |
210 |
2080 |
6BTAA5.9-G2 |
6/L |
114 |
135 |
8.3 |
24 |
30 |
|
GF-150 |
150 |
187.5 |
2390*950*1561 |
210 |
2100 |
6CTA8.3-G2 |
6/L |
114 |
135 |
8.3 |
24 |
30 |
|
GF-180 |
180 |
225 |
2480*1020*1605 |
205 |
2200 |
6CTAA8.3-G2 |
6/L |
114 |
135 |
8.3 |
24 |
30 |
|
GF-200 |
200 |
250 |
2496*1020*1596 |
197 |
2250 |
6LTAA8.9-G2 |
6/L |
114 |
135 |
8.9 |
28 |
35 |
Features:
◆More fuel efficient:from anvanced design and sophisticated manufacturing of CUMMINS, low fuel consumption
◆Strong power: the design of wastegate has a perfect performance at low speed
◆Stable and reliable performance:the integrated design of cylinder and cylinder cover eliminate water leakage and oil leak,component is about 25% less than other similar products,the fault rate is falling
◆the lower cost of maintenance:the less component and lower fault rate, reduce the cost of comprehensive maintenance of engine.the maintenance time can by saved more than 50%.
◆excellent cold start performance:configuration of intake preheater and 6.6kw strong power starter, thoroughly improving the cold start performance,pass the extremely low temperature(minus 36 degrees) validation in Mohe--China's arctic village.
Standard configuration:
|
Enigne |
Maintenance-free battery/battery connecting wire/battery charger |
Alternator |
|
40℃ radiating water tank |
Output circuit breaker |
Industrinal muffler/bellows |
|
Intellectual control panel |
Steel frame |
Standard tool |
Optional configuration:
|
50℃Radiating |
Fuelty pe-water jacket heater |
Auto communication control system |
|
Residential muffler |
Oil-water separator |
3-remote communication control system |
|
Heavy duty industrial extinguishing muffler |
Base fuel tank/daily fuel tank |
Auto parallel running control system |
|
Heavy duty airfilter |
Auto lube feeding system |
ATS panel |
|
Elect rothe rmic wate rjacket heater |
Auto fuel feeding system |
Special tool |
